EXP1616R
Description

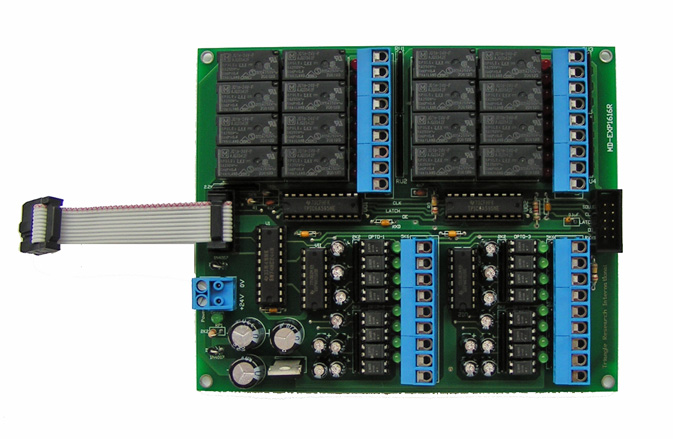

The EXP1616R is an expansion board specifically designed for the FMD-Series and F-Series
PLCs. It adds additional 16 opto-isolated digital inputs and 16 relay outputs to any FMD/F Series.
- Key Features
- Specification
- Documentation
- Application
- Review
- Compatible PLCs
EXP1616R can be cascaded or mixed with EXP4040 to provide up to maximum of 128 digital inputs and 128 digital outputs for any FMD or F-series PLC model.
EXP1616R is also identical in size to the FMD and F-Series PLCs. This allows one or more of the expansion board(s) to be “stacked” on top or below a T100MD1616+ PLC for applications where the controllers must be fitted within a very tight space.
EXP1616R is also identical in size to the FMD and F-Series PLCs. This allows one or more of the expansion board(s) to be “stacked” on top or below a T100MD1616+ PLC for applications where the controllers must be fitted within a very tight space.
| - Digital Input: | 16 (Opto-isolated, 24V NPN/PNP or AC inputs.) |
| - Digital Output (peak current): | 16 (5A @ 24V DC or 120V AC or 2A @ 250V AC) |
| - Dimension (L x W x H) | 5.43" x 4.45" x 1.0" (138mm x 113.2mm x 25.4mm) |
| - Power Source | connected to same 12-24V power supply as the PLC |
